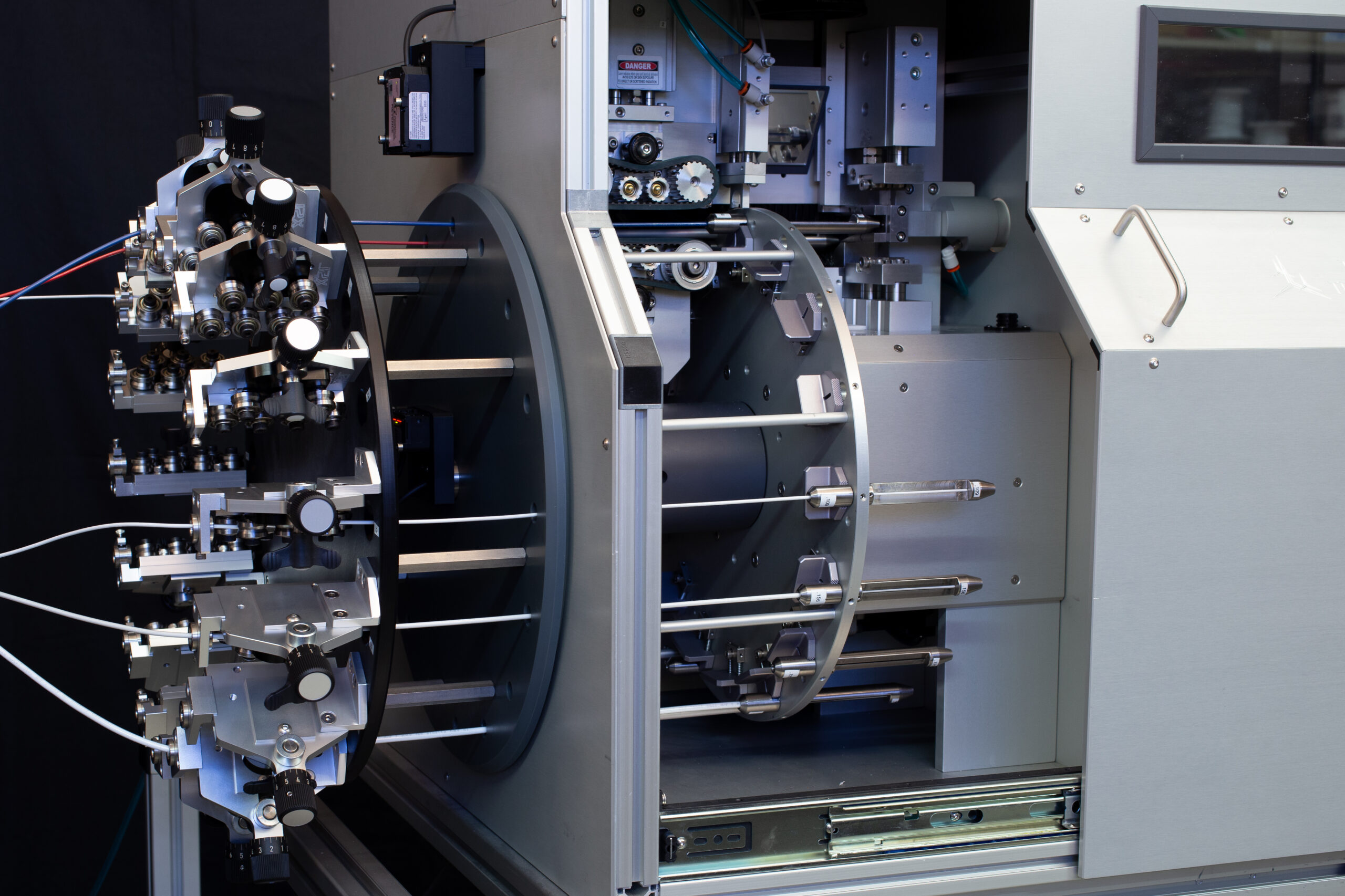

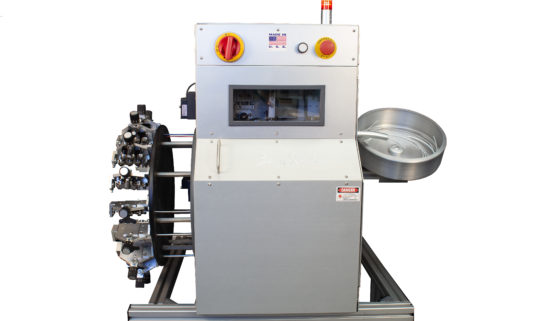

• The M-100L-FG-MW Multi-Wire is a fully automatic, air cooled, turnkey wire marking system that can laser mark up to 16 different wires/cables on demand. The system utilizes a UV solid state laser with an integrated high- speed scanner. User friendly software allows unlimited font selection (any TrueType font for any language) as well as full graphics capabilities (pictures, logos, barcodes, etc). The system supports both vertical and horizontal text orientation, programmable message spacing, three separate zones of print with variable separation spaces, and source and destination coding on wire ends.

• Processes up to 16 different 26 AWG -
4 AWG wires/cables

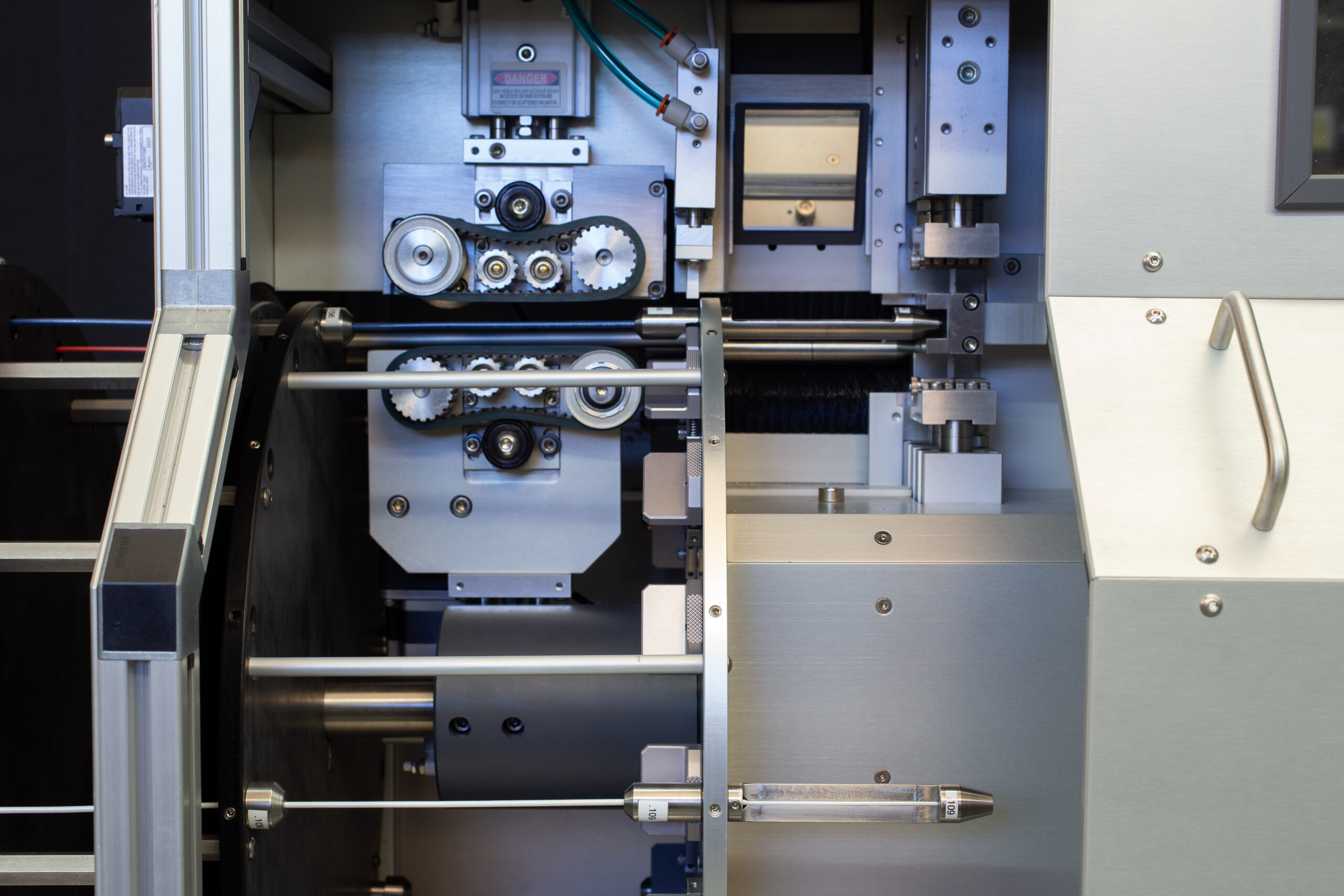

• Dual stepping motor pulling for accurate marking and precise length cutting of round wires and twisted cables alike

• Meets MIL-W-5088L, AS-5088-L, as well as SAE ARP5607 (Legibility of Print).

• Qualified per the BAC5152 spec.

• Pneumatic cutter

• Powered coil pan

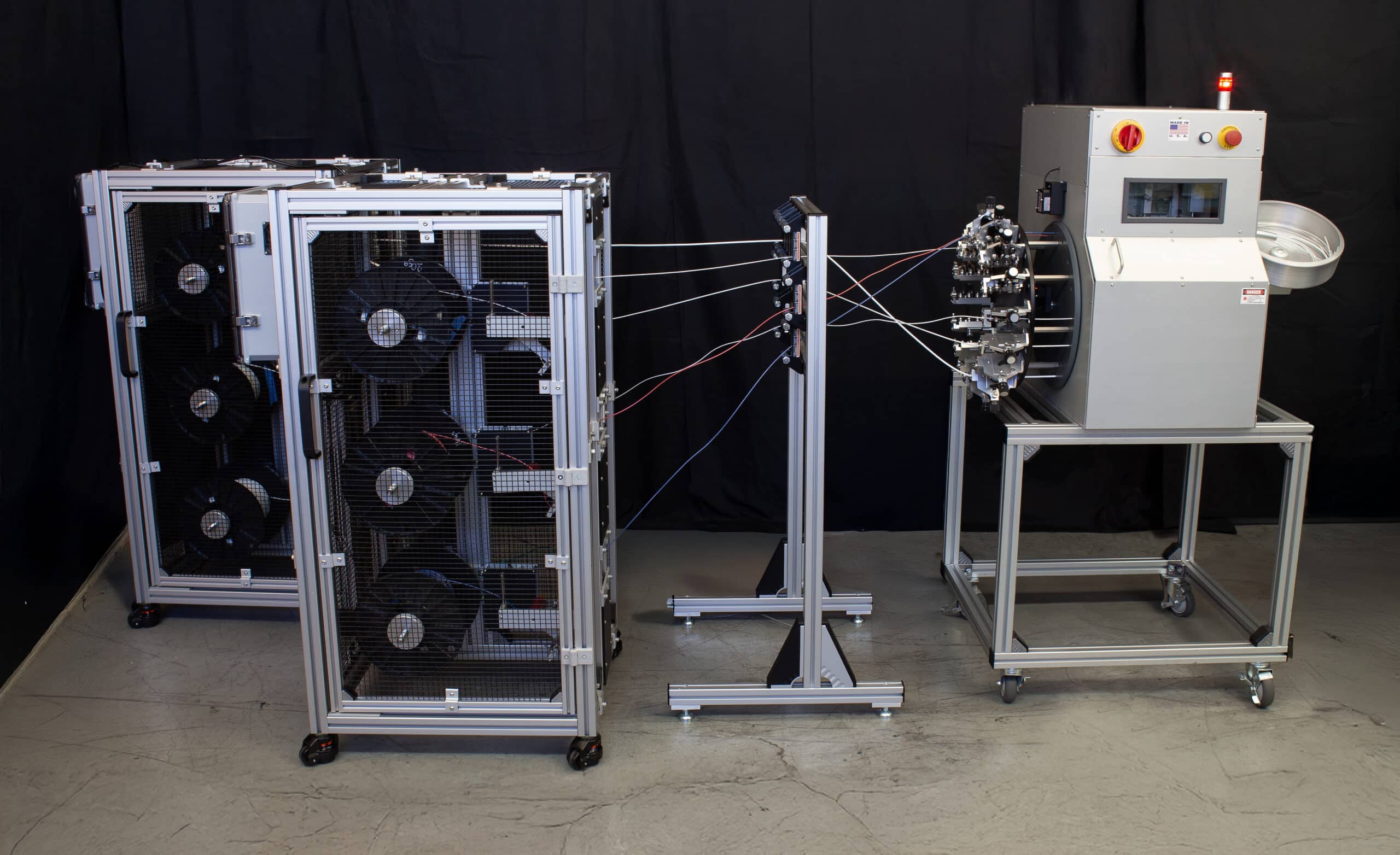

• Single coil wire prefeed

• Wire throughput: up to 100 ft/min depending on font size.

• Wire and cable jacket materials: PTFE, TFE, PEF, ETEF, XL-ETFE, etc.

• Laser markable wire types: BMS 13-48, BMS 13-60, Raychem spec 55, AS22759/16-19, 32-46, 80-92, etc.

• Integrated laptop computer

• Microsoft Windows™ control application

• Electrical Power: 120/220 VAC 1 phase, 4 A 50/60 Hz

• Shop Air

• Ambient temperature 10C to 40C

• Relative humidity 20% to 80%

• 30" wide x 20" deep x 23" high

• Weight: 75 lbs
